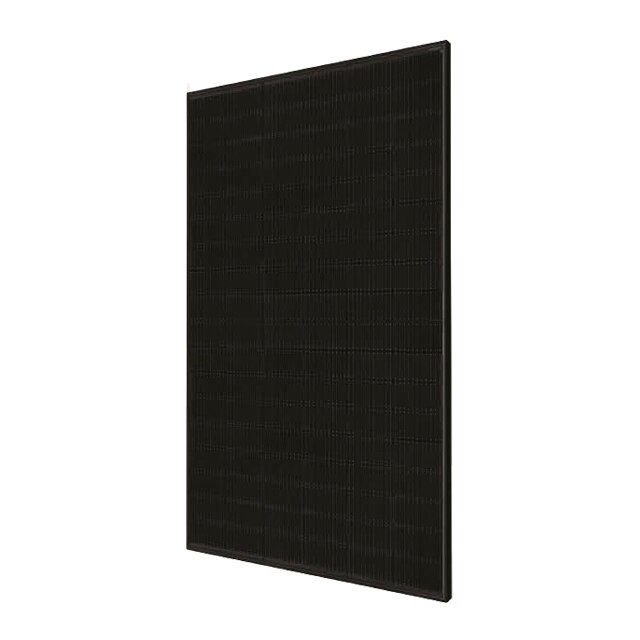

JA Solar 405W Half-Cut Full Black (JAM54S31-405/MR)

Manufacturers part number JAM54S31-405/MR
Our reference 31-114490

Technical details

Watt 405 Module type Monofacial Framed Number of cells 108 (54)
Watt/m² 207,0 Module surface (m²) 1,953
Cell Half-cut Cell Technology M10 (182mm)
Module efficiency 20,7% Temp. Coef PMAX -0,35%/K
Panel frame color Black
Dimensions 172,2 x 113,4 x 3,0 cm Weight 19,5kg
Cable length 1 100mm - MC4-EVO2 connectors
Junction box Split box - Mid
Product warranty 12 years
Performance warranty 84,8% after 25 years
Module packaging 36,0 per pallet - 936 per container
