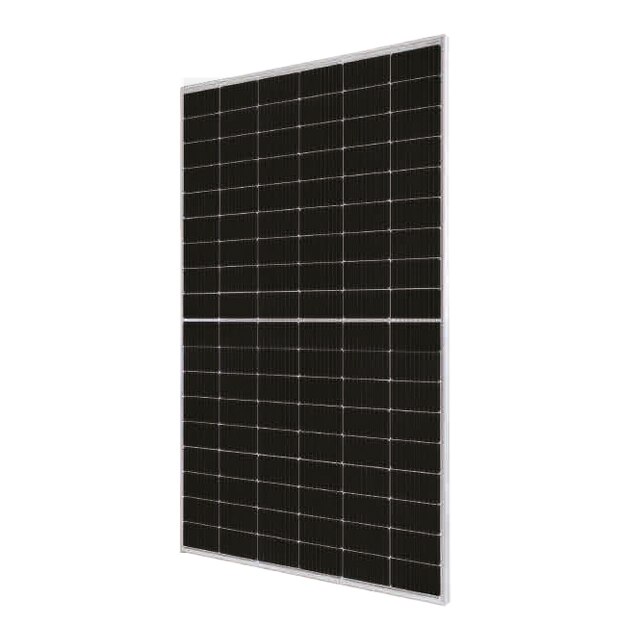

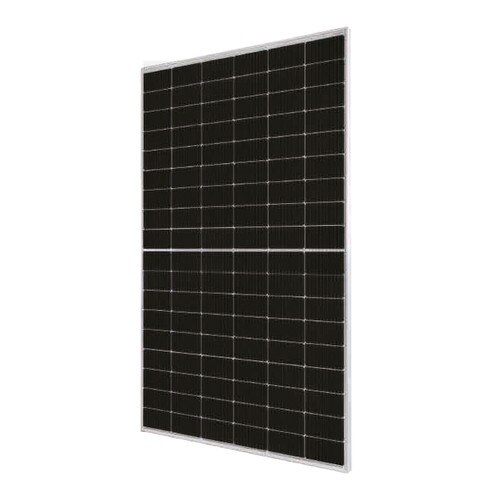

JA Solar 405W Half-Cut Silver Frame (JAM54S30-405/MR) Manufacturers part number JAM54S30-405/MR Our reference 31-113354 Please log in to see price or purchase this item Quantity discounts available QuantityPrice Technical details Watt 405 Module type Monofacial Framed Number of cells 108 (54) Watt/m² 207,0 Module surface (m²) 1,953 Cell Half-cut Cell Technology M10 (182mm) Module efficiency 20,7% Temp. Coef PMAX -0,35%/K Panel frame color Silver Dimensions 172,2 x 113,4 x 3,0 cm Weight 21,5kg Cable length 1 000mm - QC4.10 connectors Junction box Split box - Mid Product warranty 12 years Performance warranty 84,8% after 25 years Module packaging 36,0 per pallet - 936 per container DownloadsDocuments Data SheetEN Warranty ManualENFR Installation ManualEN Product ImagesClick to downloadCertificates JaSolar CE Certificate JaSolar Certificate IEC 61215 & 61730 JaSolar Certificate IEC Ammonia JaSolar Certificate IEC Salt Mist JaSolar Certificate Mono PID JaSolar_Certificate_Specialmounting-Approval-Declaration_54S30-54S31
