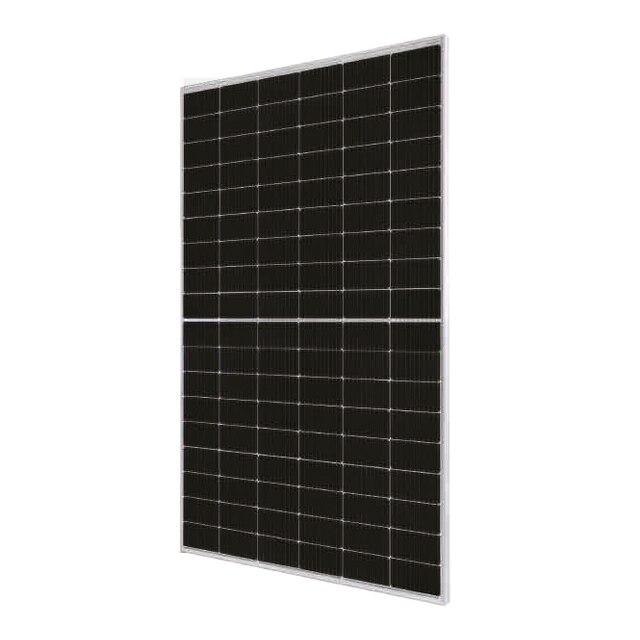

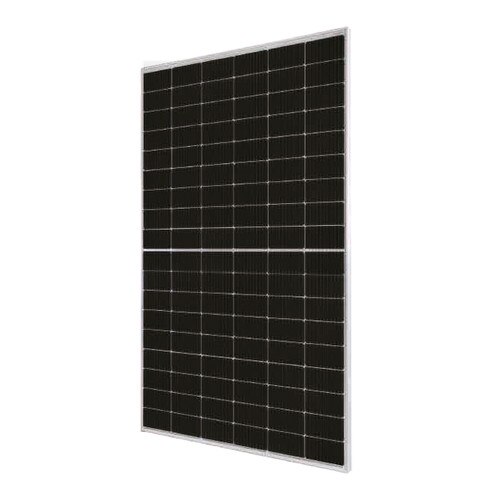

JA Solar 415W Half-Cut Silver Frame (JAM54S30-415/MR) Manufacturers part number JAM54S30-415/MR Our reference 31-114489 Please log in to see price or purchase this item Quantity discounts available QuantityPrice Technical details Watt 415 Module type Monofacial Framed Number of cells 108 (54) Watt/m² 213,0 Module surface (m²) 1,953 Cell Half-cut Cell Technology M10 (182mm) Module efficiency 21,3% Temp. Coef PMAX -0,35%/K Panel frame color Silver Dimensions 172,2 x 113,4 x 3,0 cm Weight 19,5kg Cable length 1 100mm - MC4-EVO2 connectors Junction box Split box - Mid Product warranty 12 years Performance warranty 84,8% after 25 years Module packaging 36,0 per pallet - 936 per container DownloadsDocuments Data SheetEN Warranty ManualEN Installation ManualEN Product ImagesClick to downloadCertificates JaSolar CE Certificate JaSolar Certificate IEC 61215 & 61730 JaSolar Certificate IEC Ammonia JaSolar Certificate IEC Salt Mist JaSolar Certificate Mono PID JaSolar_Certificate_ISO_14001_2021 JaSolar_Certificate_ISO_9001_2021 JaSolar_Certificate_Specialmounting-Approval-Declaration_54S30-54S31
