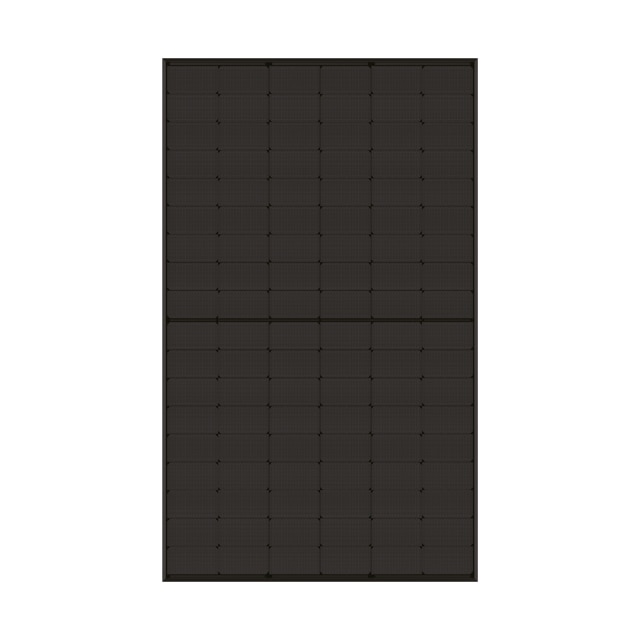

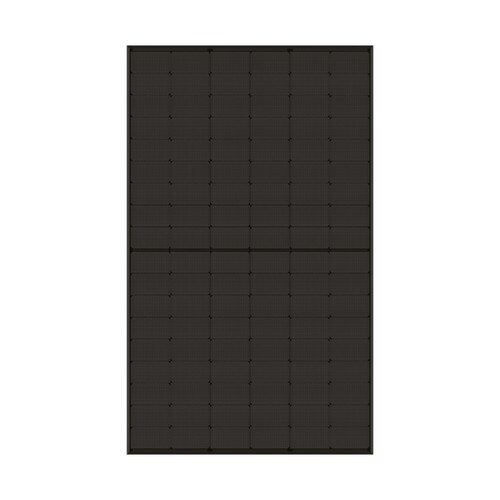

Jinko Solar Tiger Neo R 430W Half-Cut Full Black 25 Years (JKM430N-54HL4R-B)

Manufacturers part number JKM430N-54HL4R-B
Our reference 31-114630

Technical details

Watt 430 Module type Monofacial Framed Number of cells 108 (54)
Watt/m² 215,0 Module surface (m²) 1,998
Cell Half-cut Cell Technology M10 (182 x 186 mm)
Module efficiency 21,52% Temp. Coef PMAX -0,3%/K
Panel frame color Black
Dimensions 176,2 x 113,4 x 3,0 cm Weight 22,0kg
Cable length 1 200mm - MC4 connectors
Junction box Split box - Mid
Product warranty 25 years
Performance warranty 87,4% after 30 years
Module packaging 36,0 per pallet - 936 per container
