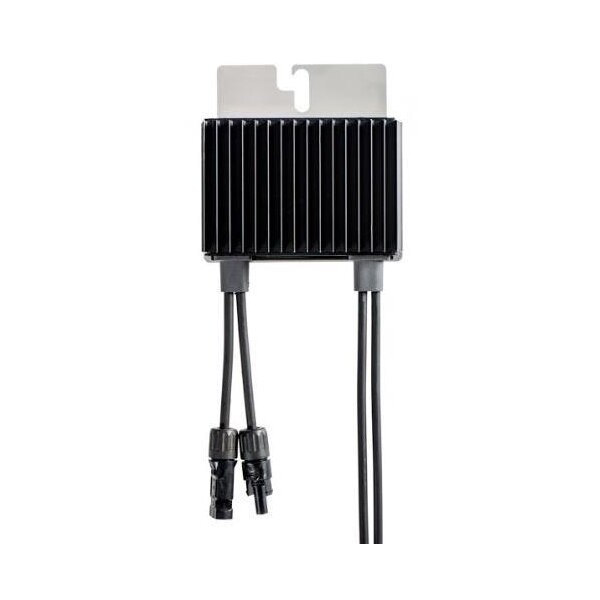

SolarEdge Power Optimizer P1100 (2 Modules Landscape Inp. 1,3m Outp. 2,4m) (P1100-4RMXMBT)

Manufacturers part number P1100-4RMXMBT
Our reference 36-018167

Technical details

Certifications BE FR NL LU DE ES
Accessories type Optimizer
Rated input DC power (W) 1 100 Max input voltage (V) VOC max 125
Max short circuit current ASC (A) 14,0
Max efficiency 99,5% Weighted efficiency 98,6%
Overvoltage category II Max output voltage (VDC) 80 Max output current (ADC) 18
Optimizer compatible inverter Three Phase SE16K and larger
Max system voltage (V) 1 000 Input/output connector MC4
Input wire length 1,3m Output wire length 2,4m
Module installation Landscape Connection method Single input for series connected modules
