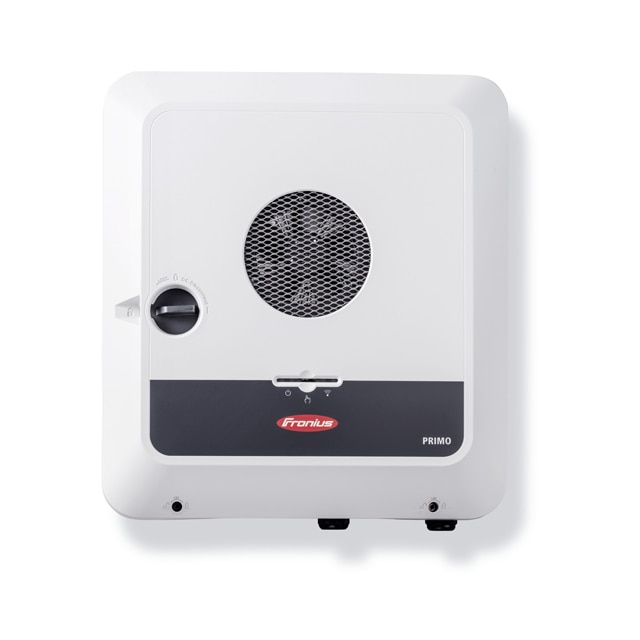

Fronius Primo GEN24 6.0 Plus (4,210,145,002)

Manufacturers part number 4,210,145,002
Our reference 32-017965

Technical details

Watt 6 000 AC 6 000 W DC 9 000 W
Efficiency 97,1% Phase 1-phase MPPT 2
Display No
Other features PV Point Full backup (only DACH)
DC connection Push-in spring terminal 2,5mm² to 10mm² Optimizers no
Enclosure protection IP66
Compatible batteries BYD HVS, HVM
Dimensions 52,8 x 47,4 x 16,4 cm Weight 19,2kg
Product warranty years Extensions for 5 years 10 years 15 years 20 years
Certifications BE FR NL LU DE
Packaging 14,0 per pallet

Downloads

Documents
