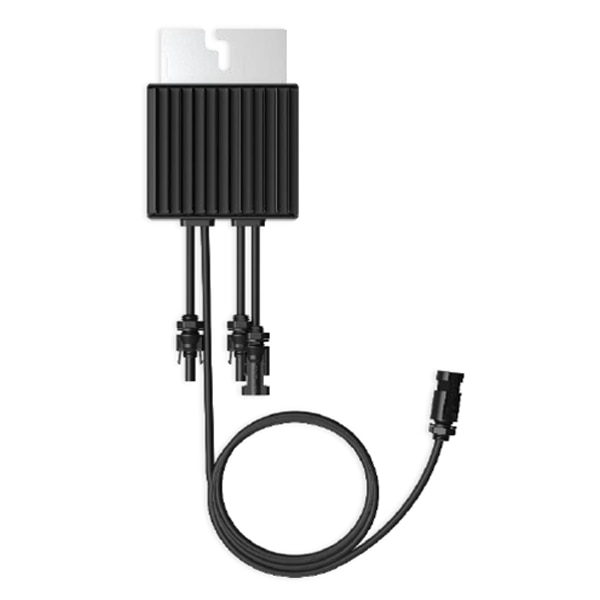

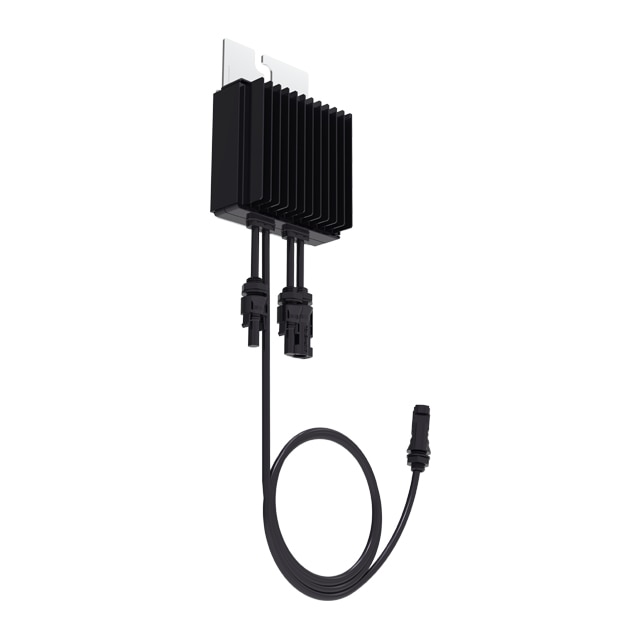

Huawei 1300W Optimizer (2 Modules) Short Input Cable (02314APY)

Manufacturers part number 02314APY
Our reference 36-114676
Quantity discounts available
QuantityPrice

Technical details

Enclosure protection IP68
Certifications ES
Accessories type Optimizer
Rated input DC power (W) 1 300 Max input voltage (V) VOC max 125
Max short circuit current ASC (A) 20,0
Max efficiency 99,5% Weighted efficiency 99,0%
Overvoltage category Class II Max output voltage (VDC) 80
Max output current (ADC) 22
Optimizer compatible inverter SUN2000-12-20KTL-M2 SUN2000-12-25KTL-M5 SUN2000-30-40KTL-M3 SUN2000-50KTL-M3

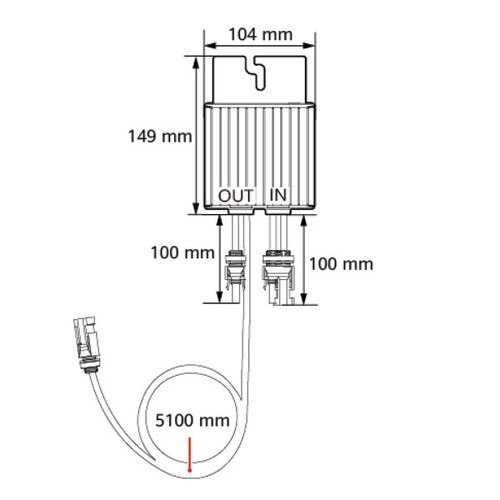

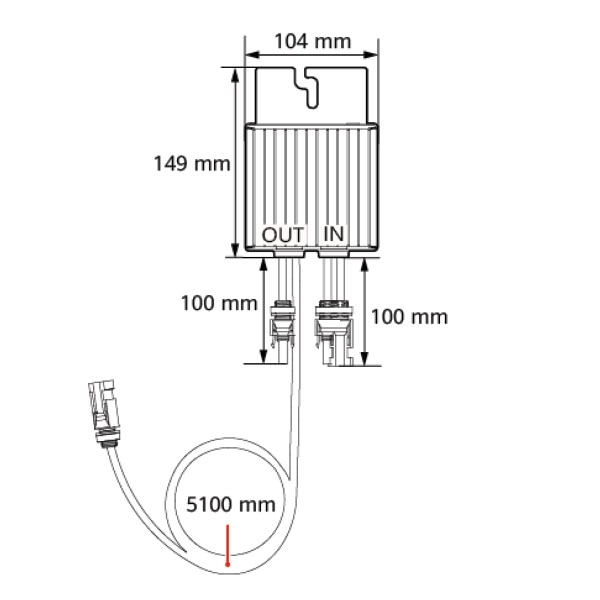

Dimensions 14,9 x 10,4 x 4,9 cm Weight 1,05kg
Input wire length 0,1m Output wire length 5,1m
Module installation Portrait,Landscape
Connection method Single input for series connected modules
Min/max string length 3ph 8 / 25
Max DC power per string (W) 20 000 Mounting Frame mounted,Rail mounted
Packaging Unit 10,0 pieces
