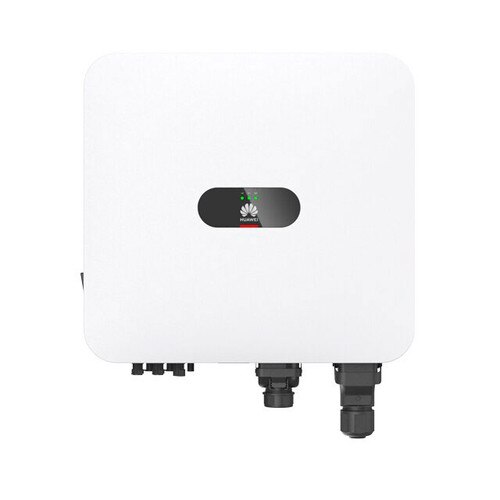

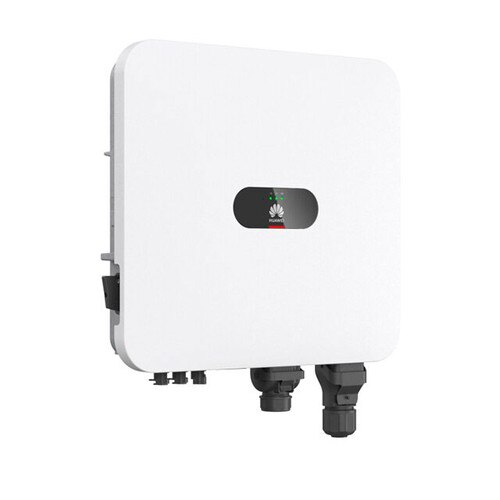

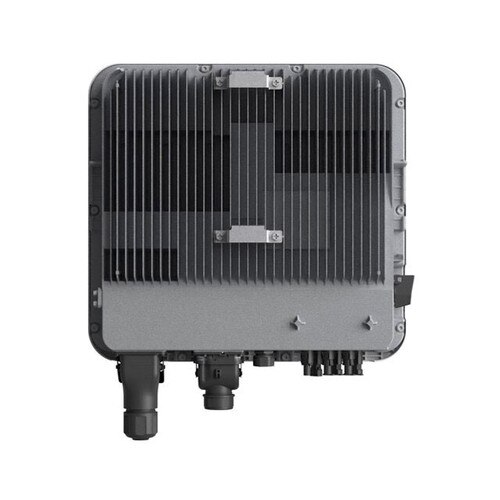

Huawei SUN2000-10K-MAP0 (1076946)

Manufacturers part number 01076946
Our reference 32-118207

Technical details

Watt 10 000 AC 11 000 VA DC 18 000 W
Efficiency 98,1% Phase 3-phase MPPT 2
Display No
Communication RS485
Optional Smart Dongle-WLAN-FE (Optional) Smart Dongle-4G (Optional)
DC connection Amphenol H4 Optimizers no,fully
Enclosure protection IP66 ARC Fault Detection Yes
Compatible batteries LUNA2000-5/10/15-S0 & LUNA2000-7/14/21-S1
Dimensions 49,0 x 46,0 x 13,0 cm Weight 21,0kg
Product warranty 10 years Extensions for 15 years 20 years
Certifications BE NL LU DE
Packaging 16 per pallet
