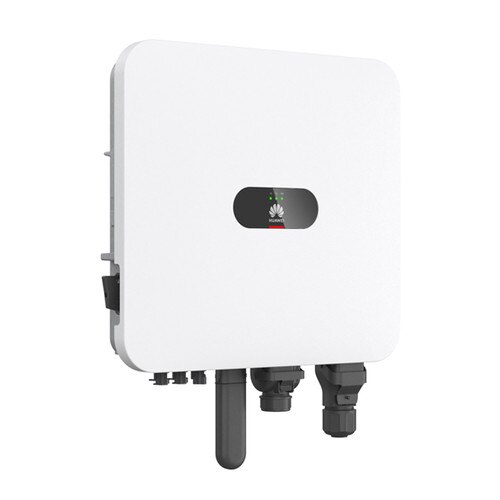

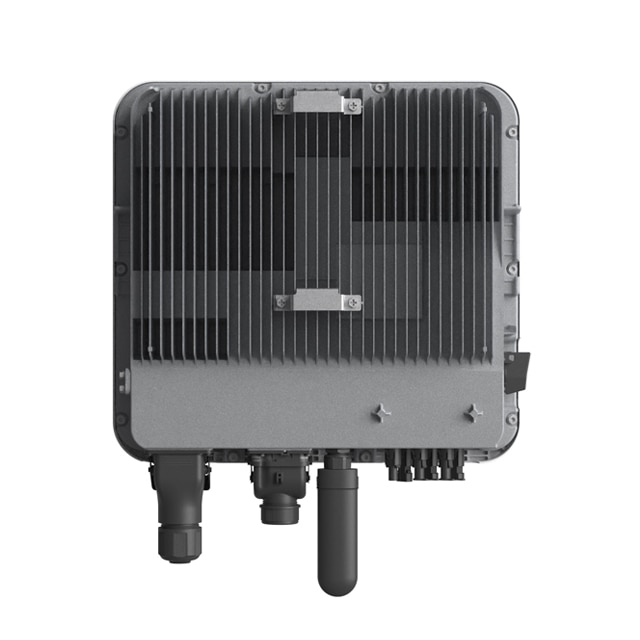

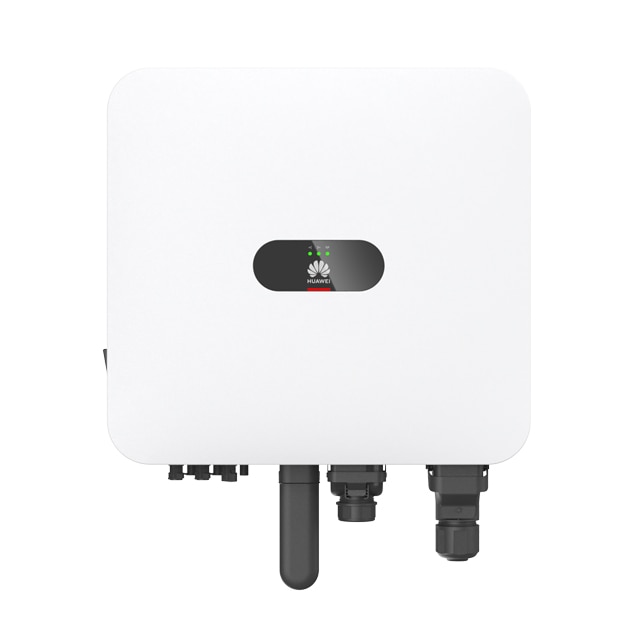

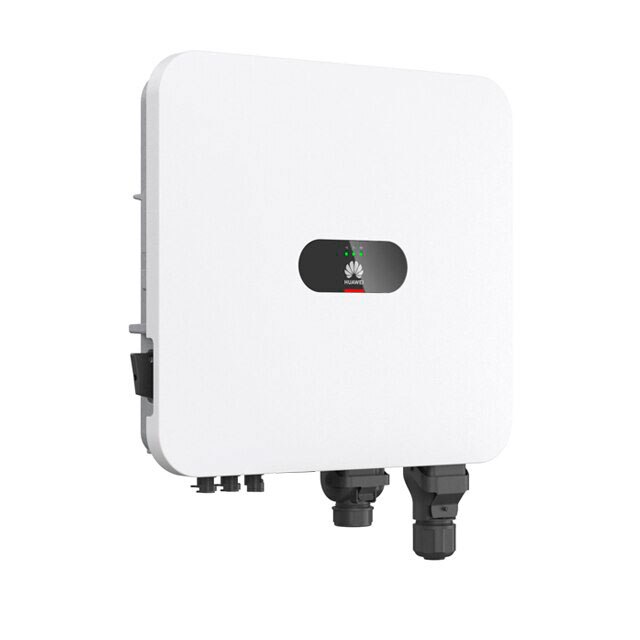

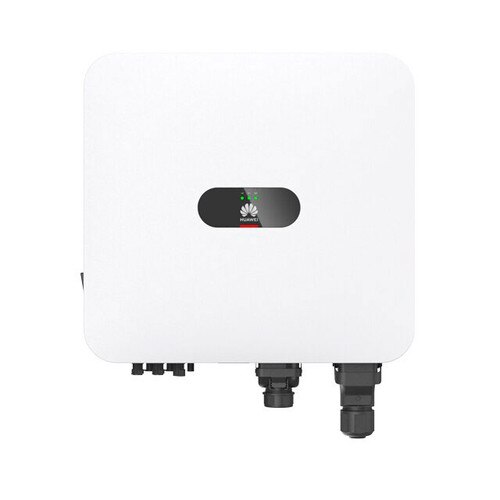

Huawei SUN2000-12K-MAP0 (1076948)

Manufacturers part number 01076948
Our reference 32-118208
Quantity discounts available
QuantityPrice
1 - 21 397,71€
3 - 41 384,14€
5 - 71 370,57€
8 +1 357,00€

Technical details

Watt 12 000 AC 13 200 VA DC 22 000 W
Efficiency 98,2% Phase 3-phase MPPT 2
Display No
Communication RS485
Optional Smart Dongle-WLAN-FE (Optional) Smart Dongle-4G (Optional)
DC connection Amphenol H4 Optimizers no,fully
Enclosure protection IP66 ARC Fault Detection Yes
Compatible batteries LUNA2000-5/10/15-S0 & LUNA2000-7/14/21-S1
Dimensions 49,0 x 46,0 x 13,0 cm Weight 21,0kg
Product warranty 10 years Extensions for 15 years 20 years
Certifications BE NL LU DE
Packaging 16 per pallet

Downloads

Documents

Certificates
