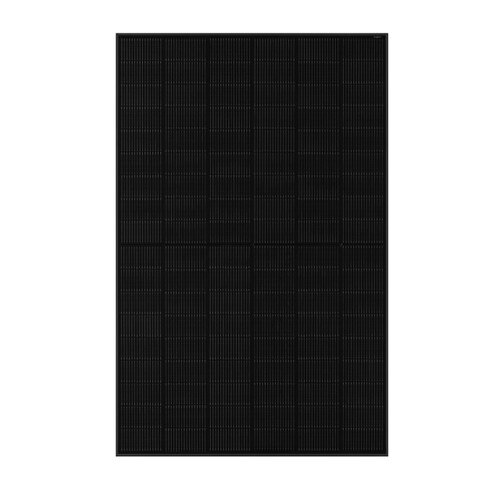

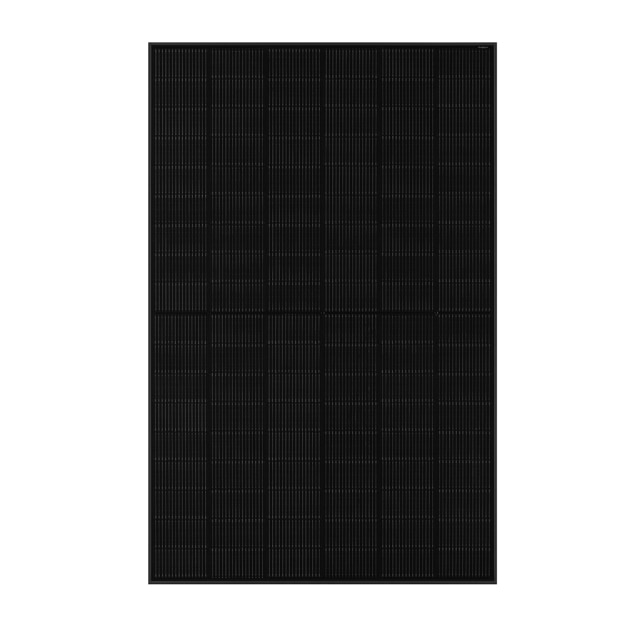

JA Solar 450W Half-Cut Full Black Bifacial Dual Glass (JAM54D41-450/LB)

Manufacturers part number JAM54D41-450/LB
Our reference 31-119781

Technical details

Watt 450 Module type Bifacial Framed Number of cells 108 (54)
Watt/m² 225,0 Module surface (m²) 1,998
Cell Half-cut Wafer Size M10 (182mm)
Module efficiency 22,5% Temp. Coef PMAX -0,3%/K
Cell Technology TOPCon N-Type Glass Type Dual Glass
Panel frame color Black Panel backsheet type Glass (black)
Dimensions 176,2 x 113,4 x 3,0 cm Weight 22,0kg
Cable length + 1 200mm - MC4-EVO2 connectors
Cable length - 1 200mm - MC4-EVO2 connectors
Junction box Split box - Mid
Product warranty 25 years
Performance warranty 87,4% after 30 years
Module packaging 36 per pallet - 936 per container
