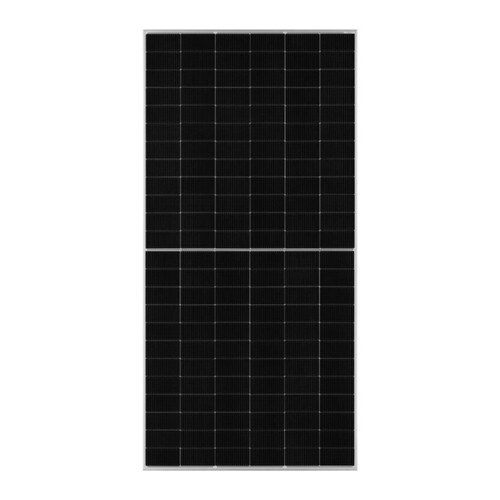

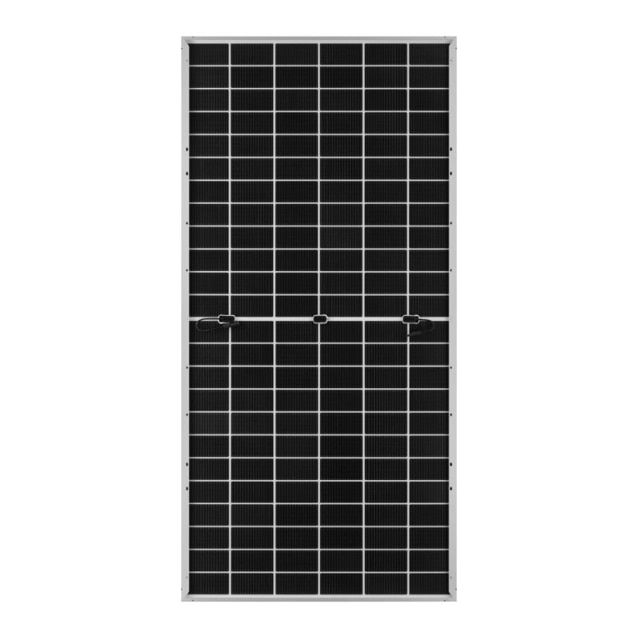

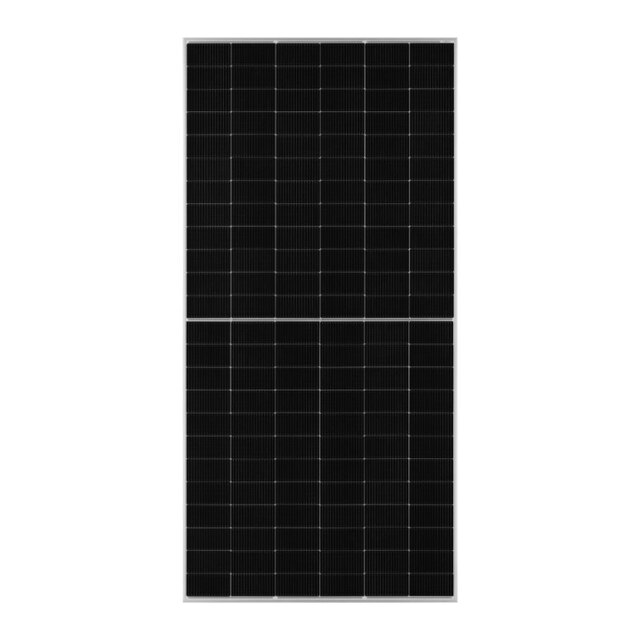

JA Solar 605W Silver Frame Bifacial Dual Glass (JAM72D40-605/LB)

Manufacturers part number JAM72D40-605/LB
Our reference 31-120235
Quantity discounts available
QuantityPricePrice/Wp
1 - 3562,80€0,104€
36 - 7159,77€0,099€
72 - 14358,56€0,097€
144 - 35957,35€0,095€
360 +55,54€0,092€

Technical details

Watt 605 Module type Bifacial Framed Number of cells 144 (72)
Watt/m² 229.0 Module surface (m²) 2.646
Cell Half-cut Wafer Size M10 (182mm)
Module efficiency 22.9% Temp. Coef PMAX -0.29%/K
Cell Technology TOPCon N-Type Glass Type Dual Glass
Panel frame color Silver Panel backsheet type Glass (transparent)
Dimensions 233.3 x 113.4 x 3.0 cm Weight 32.5kg
Cable length + 1,400mm - MC4-EVO2 connectors
Cable length - 1,400mm - MC4-EVO2 connectors
Junction box Standard - Top
Product warranty 12 years
Performance warranty 87.4% after 30 years
Module packaging 36 per pallet - 720 per container
