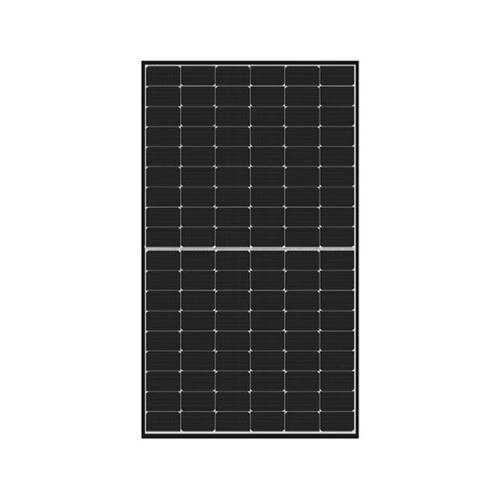

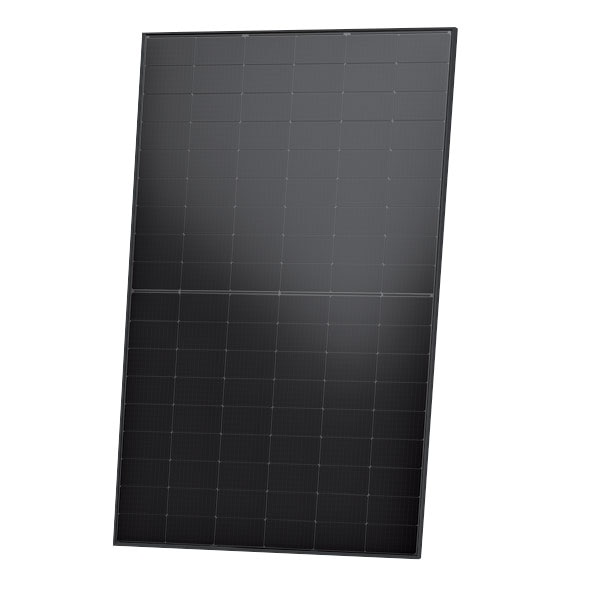

Jinko Solar Tiger Neo 505W Half Cut Black Frame Bifacial Dual Glass (JKM505N-54HL4M-BDV)

Name: Jinko Solar Tiger Neo 505W Half Cut Black Frame Bifacial Dual Glass (JKM505N-54HL4M-BDV)
SKU: 31-119958
Availability: PreOrder

Manufacturers part number JKM505N-54HL4M-BDV

Our reference 31-119958

Quantity discounts available

Watt 505 Module type Bifacial Framed Number of cells 108 (54)

Watt/m² 227,0 Module surface (m²) 2,224

Cell Half-cut

Module efficiency 22,71% Temp. Coef PMAX -0,29%/K

Cell Technology TOPCon N-Type Glass Type Dual Glass

Panel frame color Black Panel backsheet type Glass (white)

Dimensions 196,1 x 113,4 x 3,0 cm Weight 27,0kg

Cable length + 1 200mm - MC4-EVO2 connectors

Cable length - 1 200mm - MC4-EVO2 connectors

Junction box Split box - Mid

Product warranty 15 years

Performance warranty 87,4% after 30 years

Module packaging 37 per pallet - 888 per container
