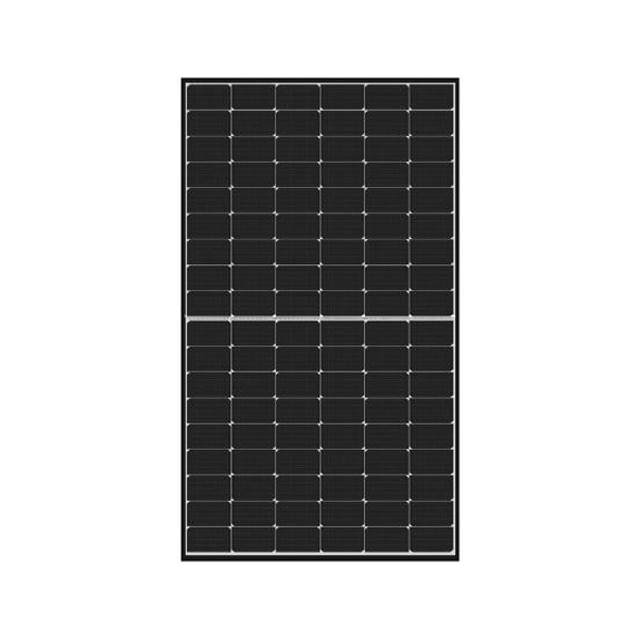

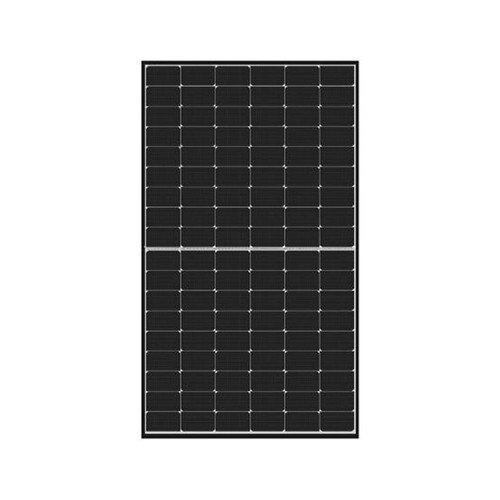

Jinko Solar Tiger Neo 510W Half Cut Black Frame Bifacial Dual Glass (JKM510N-54HL4M-BDV)

Manufacturers part number JKM510N-54HL4M-BDV
Our reference 31-119959


Technical details

Watt 510 Module type Bifacial Framed Number of cells 108 (54)
Watt/m² 229,0 Module surface (m²) 2,224
Cell Half-cut
Module efficiency 22,93% Temp. Coef PMAX -0,29%/K
Cell Technology TOPCon N-Type Glass Type Dual Glass
Panel frame color Black Panel backsheet type Glass (white)
Dimensions 196,1 x 113,4 x 3,0 cm Weight 27,0kg
Cable length + 1 200mm - MC4-EVO2 connectors
Cable length - 1 200mm - MC4-EVO2 connectors
Junction box Split box - Mid
Product warranty 15 years
Performance warranty 87,4% after 30 years
Module packaging 37 per pallet - 888 per container
