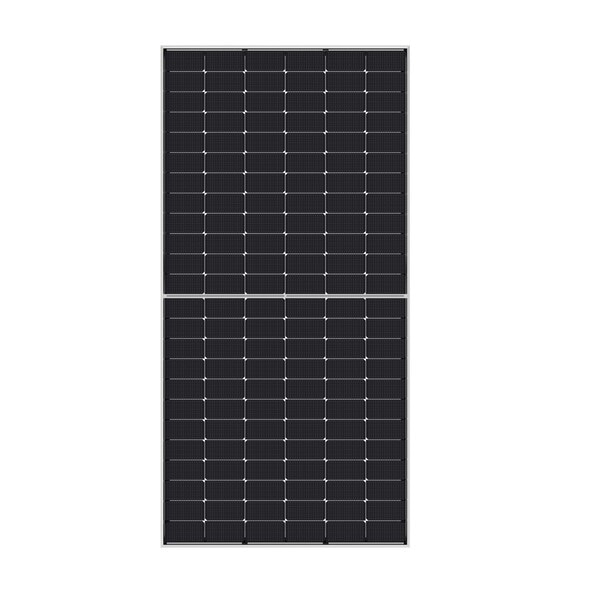

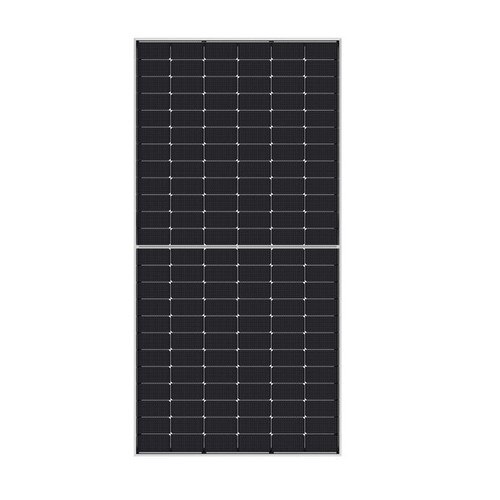

Jinko Solar Tiger Neo 590W Half-Cut Silver Frame 1400 mm cable (JKM590N-72HL4-V)

Manufacturers part number JKM590N-72HL4-V
Our reference 31-118238
Quantity discounts available
QuantityPricePrice/Wp
1 - 3569,07€0,117€
36 - 21567,30€0,114€
216 - 35965,53€0,111€
360 - 71963,76€0,108€
720 +61,99€0,105€

Technical details

Watt 590 Module type Monofacial Framed Number of cells 144 (72)
Watt/m² 228,0 Module surface (m²) 2,583
Cell Half-cut Wafer Size M10 (182mm x 183mm)
Module efficiency 22,84% Temp. Coef PMAX -0,29%/K
Cell Technology TOPCon N-Type Glass Type Single Glass
Panel frame color Silver Panel backsheet type White Tedlar
Dimensions 227,8 x 113,4 x 3,0 cm Weight 27,0kg
Cable length + 1 400mm - MC4-EVO2 connectors
Cable length - 1 400mm - MC4-EVO2 connectors
Junction box Standard - Top
Product warranty 12 years
Performance warranty 87,4% after 30 years
Module packaging 36 per pallet - 720 per container
