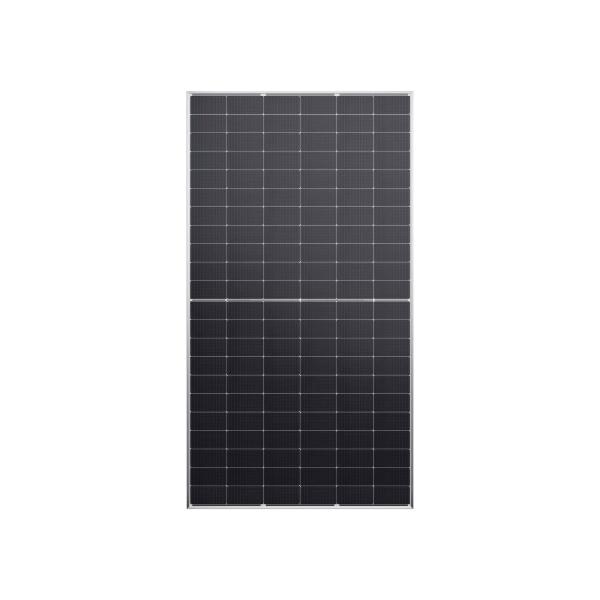

Jinko Solar Tiger Neo 630W Half Cut Silver Frame Bifacial Dual Glass (JKM630N-66HL4M-BDX)

Manufacturers part number JKM630N-66HL4M-BDX
Our reference 31-120249
Quantity discounts available
QuantityPrice

Technical details

Watt 630 Module type Bifacial Framed Number of cells 132 (66)
Watt/m² 233,0 Module surface (m²) 2,701
Cell Half-cut Wafer Size G12R (210x182mm)
Module efficiency 23,32% Temp. Coef PMAX -0,29%/K
Cell Technology TOPCon N-Type Glass Type Dual Glass
Panel frame color Silver Panel backsheet type Glass (white)
Dimensions 238,2 x 113,4 x 3,0 cm Weight 38,8kg
Cable length + 1 200mm - MC4-EVO2 connectors
Cable length - 1 200mm - MC4-EVO2 connectors
Junction box Split box - Mid
Product warranty 12 years
Performance warranty 87,4% after 30 years
Module packaging 36 per pallet - 576 per container
