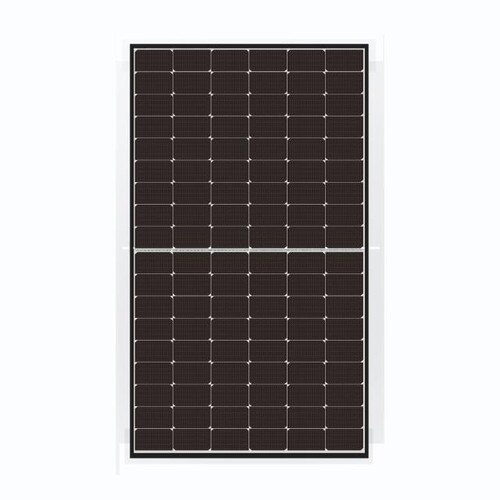

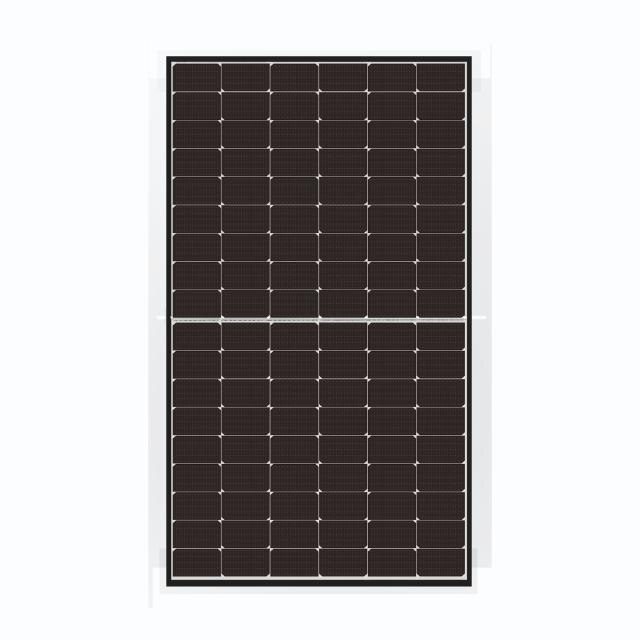

Jinko Solar Tiger Neo R 455W Half-Cut Black Frame (JKM455N-54HL4R-V)

Name: Jinko Solar Tiger Neo R 455W Half-Cut Black Frame (JKM455N-54HL4R-V)
SKU: 31-118690
Availability: InStock

Manufacturers part number JKM455N-54HL4R-V

Our reference 31-118690

Quantity discounts available

Watt 455 Module type Monofacial Framed Number of cells 108 (54)

Watt/m² 228,0 Module surface (m²) 1,998

Cell Half-cut Wafer Size M10 (182 x 186 mm)

Module efficiency 22,77% Temp. Coef PMAX -0,29%/K

Cell Technology TOPCon N-Type Glass Type Single Glass

Panel frame color Black Panel backsheet type White Tedlar

Dimensions 176,2 x 113,4 x 3,0 cm Weight 21,0kg

Cable length + 1 200mm - MC4-EVO2 connectors

Cable length - 1 200mm - MC4-EVO2 connectors

Junction box Split box - Mid

Product warranty 15 years

Performance warranty 87,4% after 30 years

Module packaging 37 per pallet - 962 per container
