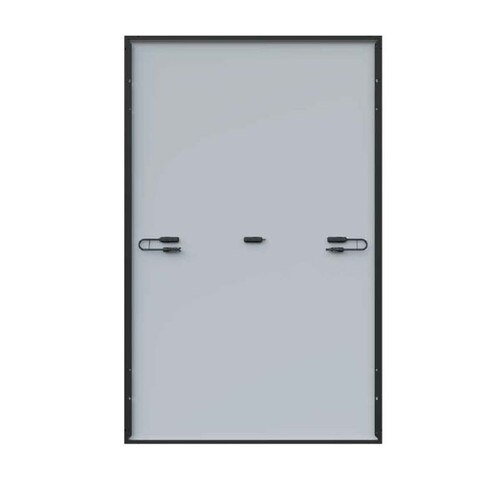

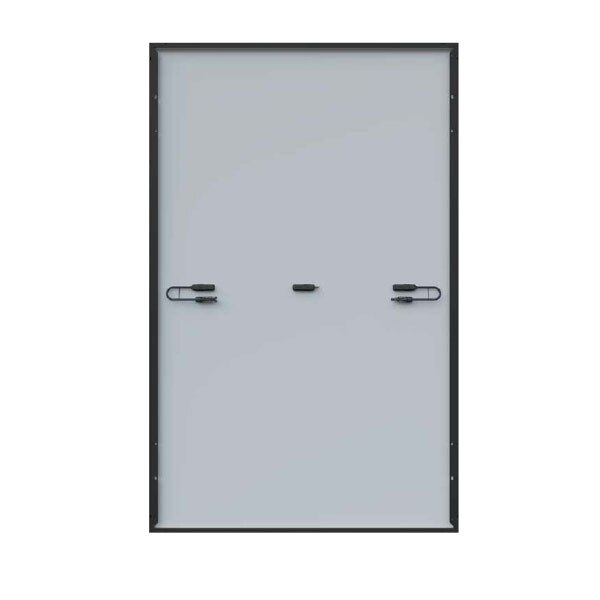

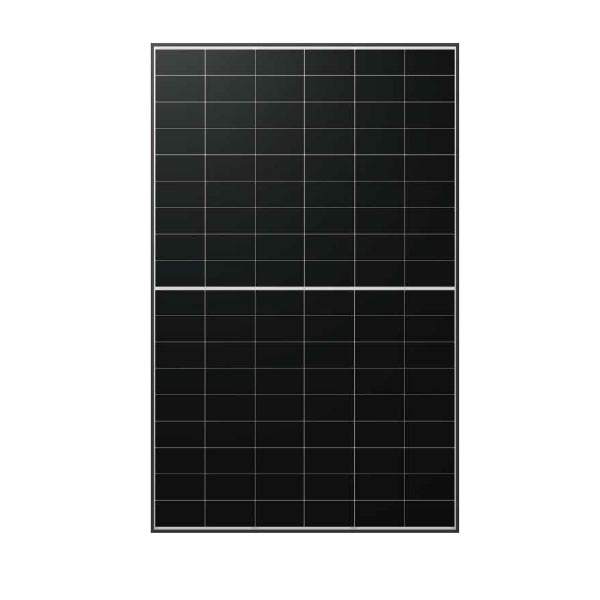

LONGi Solar Hi-MO X10 Explorer 480W Half-Cut Black Frame (LR7-54HVH-480M)

Manufacturers part number LR7-54HVH-480M
Our reference 31-119570
Quantity discounts available
QuantityPricePrice/Wp
1 - 3572,33€0,151€
36 - 21570,89€0,148€
216 - 43169,45€0,145€
432 - 86368,01€0,142€
864 +66,57€0,139€

Technical details

Watt 480 Module type Monofacial Framed Number of cells 108 (54)
Watt/m² 235,0 Module surface (m²) 2,041
Cell Half-cut Wafer Size M10 (182mm)
Module efficiency 23,5% Temp. Coef PMAX -0,26%/K
Cell Technology HPBC n-type Glass Type Single Glass
Panel frame color Black Panel backsheet type White Tedlar
Dimensions 180,0 x 113,4 x 3,0 cm Weight 21,6kg
Cable length + 1 200mm - MC4-EVO2 connectors
Cable length - 1 200mm - MC4-EVO2 connectors
Junction box Split box - Mid
Product warranty 15 years
Performance warranty 88,85% after 30 years
Module packaging 36 per pallet - 864 per container
