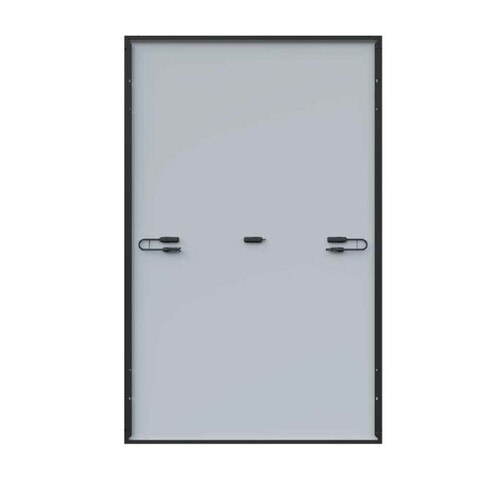

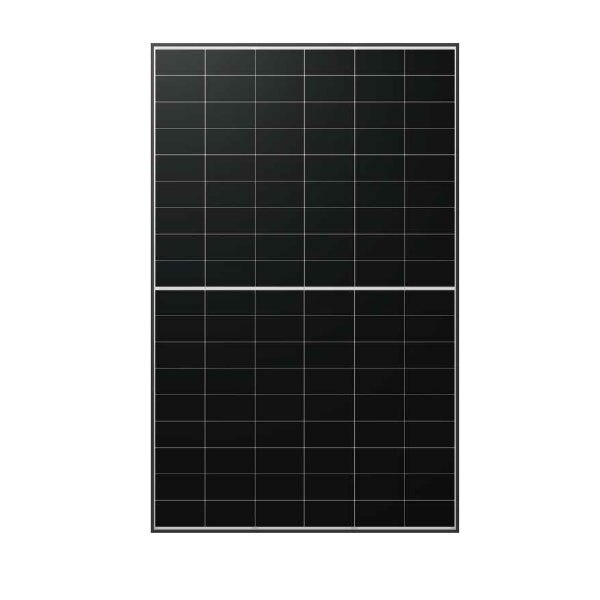

LONGi Solar Hi-MO X10 Explorer 490W Half-Cut Black Frame (LR7-54HVH-490M)

Manufacturers part number LR7-54HVH-490M
Our reference 31-120035

Technical details

Watt 490 Module type Monofacial Framed Number of cells 108 (54)
Watt/m² 240,0 Module surface (m²) 2,041
Cell Half-cut Wafer Size M10 (182mm)
Module efficiency 24,0% Temp. Coef PMAX -0,26%/K
Cell Technology HPBC n-type Glass Type Single Glass
Panel frame color Black Panel backsheet type White Tedlar
Dimensions 180,0 x 113,4 x 3,0 cm Weight 21,6kg
Cable length + 1 200mm - MC4-EVO2 connectors
Cable length - 1 200mm - MC4-EVO2 connectors
Junction box Split box - Mid
Product warranty 15 years
Performance warranty 88,85% after 30 years
Module packaging 36 per pallet - 864 per container
