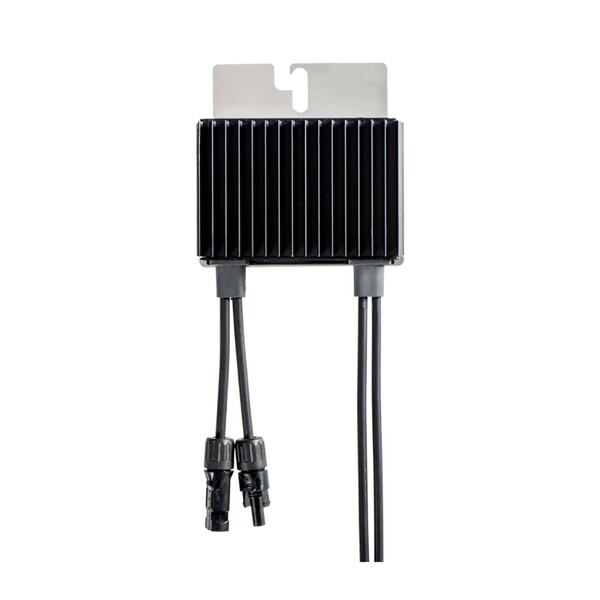

SolarEdge Power Optimizer S650B (S650B-1GM4MBM)

Manufacturers part number S650B-1GM4MBM
Our reference 36-115093
Quantity discounts available
QuantityPrice
1 - 961,82€
10 - 3961,24€
40 - 41960,65€
420 +60,06€

Technical details

Enclosure protection IP68
Certifications BE NL LU DE ES
Accessories type Optimizer
Rated input DC power (W) 650 Max input voltage (V) VOC max 85
Max short circuit current ASC (A) 16,5
Max efficiency 99,5% Weighted efficiency 98,6%
Overvoltage category II Max output voltage (VDC) 80
Max output current (ADC) 15
Optimizer compatible inverter Single & Three Phase
Dimensions 16,5 x 12,9 x 4,5 cm Weight 0,79kg
Max system voltage (V) 1 000 Input/output connector MC4
Input wire length 0,1m Output wire length 2,3m
Module installation Portrait,Landscape
Connection method Single input for single module
Min/max string length 1ph 6 / 25
Min/max string length 3ph 14 / 50
Packaging Unit 10,0 pieces
