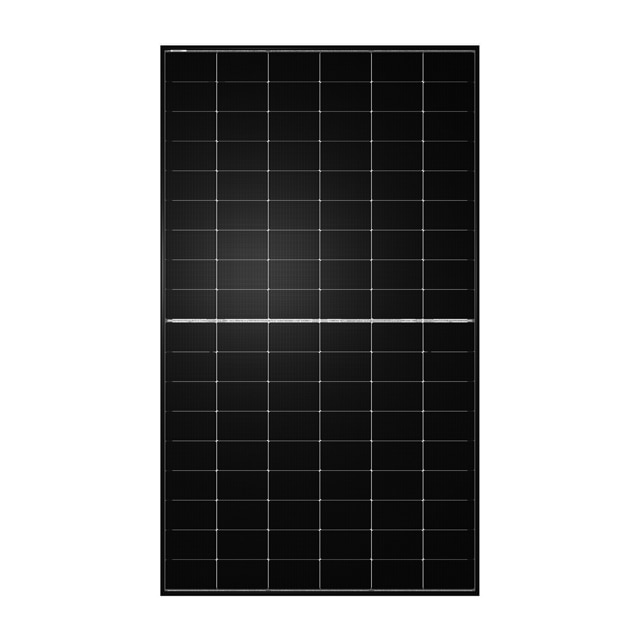

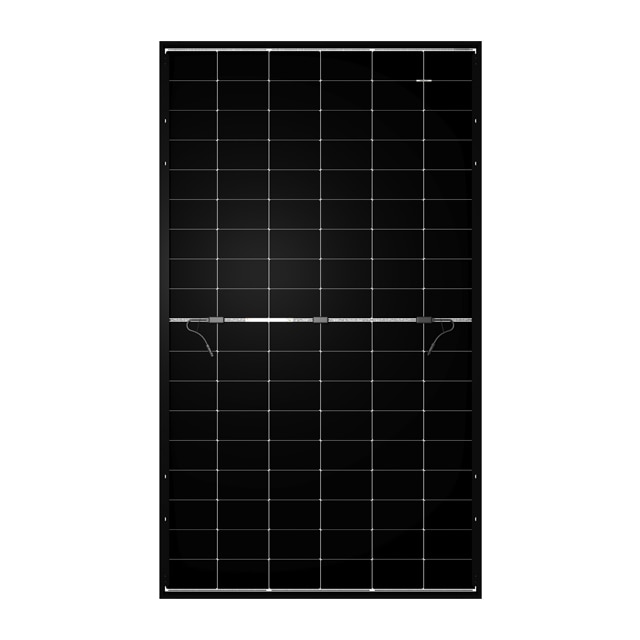

Tongwei Solar TWMNH54HD 505W Bifacial Dual Glass Half-Cut Black Frame (TWMNH-54HD505)

Manufacturers part number TWMNH-54HD505
Our reference 31-119919

Technical details

Watt 505 Module type Bifacial Framed Number of cells 108 (54)
Watt/m² 227,0 Module surface (m²) 2,224
Cell Half-cut
Module efficiency 22,7% Temp. Coef PMAX -0,28%/K
Cell Technology TOPCon N-Type Glass Type Dual Glass
Panel frame color Black Panel backsheet type Glass (transparent)
Dimensions 196,1 x 113,4 x 3,0 cm Weight 27,0kg
Cable length + 1 200mm - MC4-EVO2 connectors
Cable length - 1 200mm - MC4-EVO2 connectors
Junction box Split box - Mid
Product warranty 15 years
Performance warranty 87,4% after 30 years
Module packaging 36 per pallet - 864 per container
