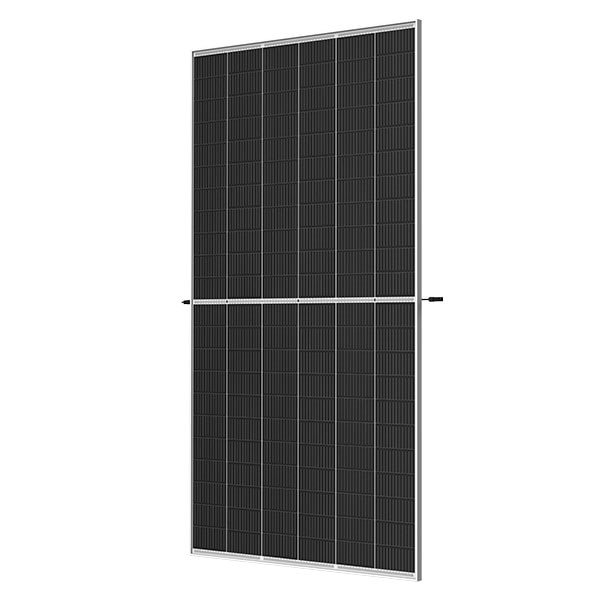

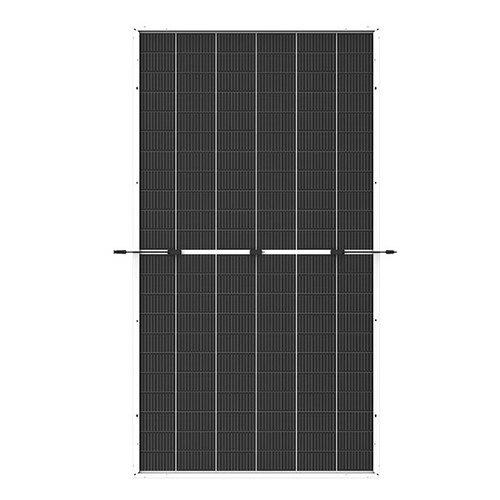

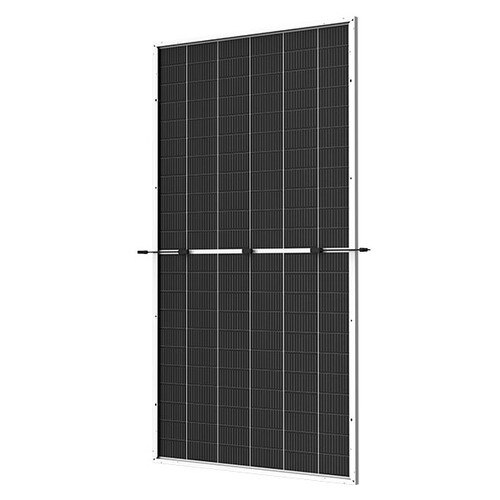

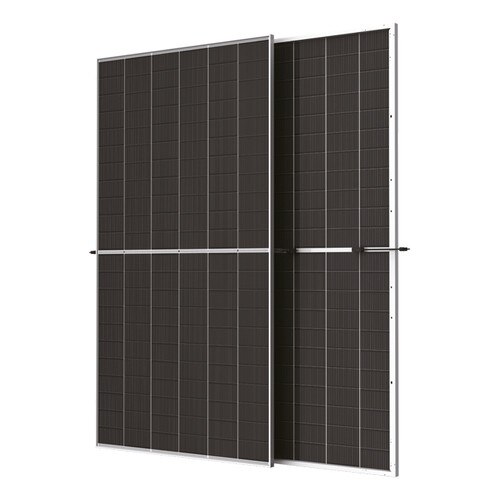

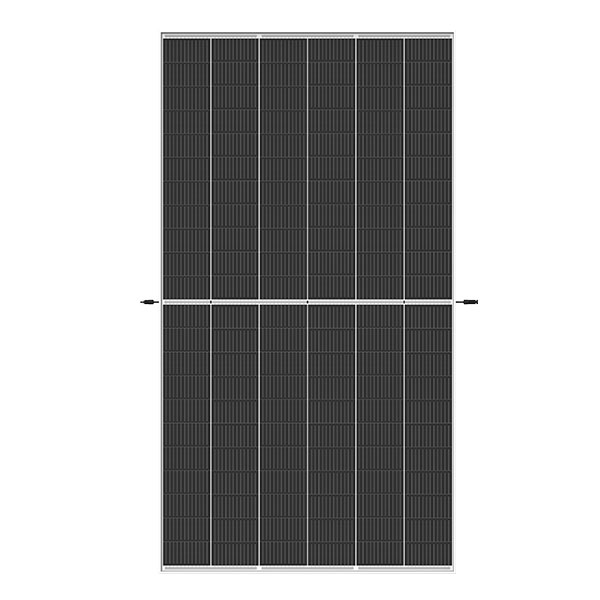

Trina Solar Vertex N 700W Half-cut Silver Frame Bifacial Dual Glass (TSM-700-NEG21C.20)

Manufacturers part number TSM-700-NEG21C.20
Our reference 31-118052
Quantity discounts available
QuantityPrice

Technical details

Watt 700 Module type Bifacial Framed Number of cells 132 (66)
Watt/m² 225,0 Module surface (m²) 3,106
Cell Half-cut Wafer Size G12 (210mm)
Module efficiency 22,5% Temp. Coef PMAX -0,29%/K
Cell Technology TOPCon N-Type Glass Type Dual Glass
Panel frame color Silver Panel backsheet type Glass (white)
Dimensions 238,4 x 130,3 x 3,3 cm Weight 38,3kg
Cable length + 350mm - MC4-EVO2 connectors
Cable length - 280mm - MC4-EVO2 connectors
Junction box Standard - Top
Product warranty 12 years
Performance warranty 87,4% after 30 years
Module packaging 33 per pallet - 594 per container
