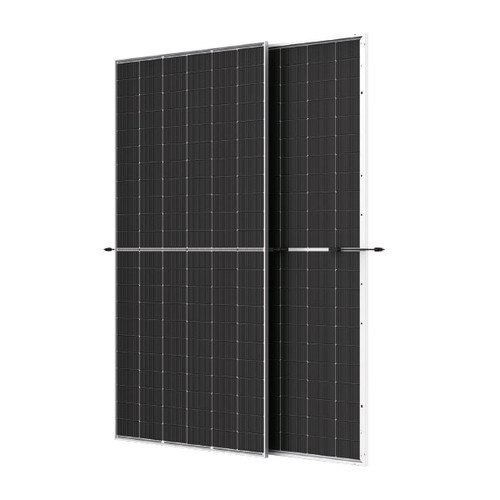

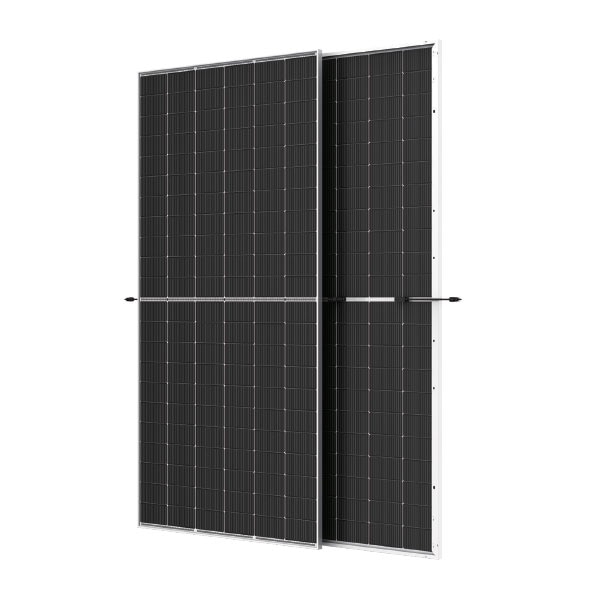

Trina Solar Vertex N (R) 615W Half-Cut Silver Frame Bifacial Dual Glass (TSM-615-NEG19RC.20)

Manufacturers part number TSM-615-NEG19RC.20
Our reference 31-118923
Quantity discounts available
QuantityPrice

Technical details

Watt 615 Module type Bifacial Framed Number of cells 132 (66)
Watt/m² 228,0 Module surface (m²) 2,701
Cell Half-cut Wafer Size G12R (210x182mm)
Module efficiency 22,8% Temp. Coef PMAX -0,29%/K
Cell Technology TOPCon N-Type Glass Type Dual Glass
Panel frame color Silver Panel backsheet type Glass (white)
Dimensions 238,2 x 113,4 x 3,0 cm Weight 33,7kg
Cable length + 1 400mm - MC4-EVO2 connectors
Cable length - 1 400mm - MC4-EVO2 connectors
Junction box Split box - Mid
Product warranty 12 years
Performance warranty 87,4% after 30 years
Module packaging 36 per pallet - 720 per container
