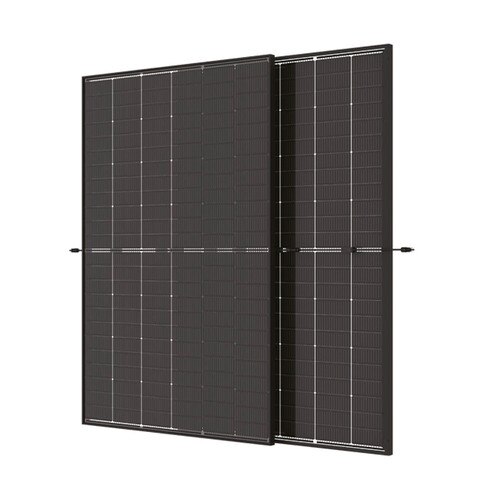

Trina Solar Vertex S+ 440W Triple-cut N-Type Black Frame Bifacial Dual Glass (TSM-440-NEG9RC.27)

Manufacturers part number TSM-440-NEG9RC.27
Our reference 31-117571
Quantity discounts available
QuantityPricePrice/Wp
1 - 3550,00€0,114€
36 - 21548,00€0,109€
216 - 43147,00€0,107€
432 - 93546,00€0,105€
936 +45,00€0,102€

Technical details

Watt 440 Module type Bifacial Framed Number of cells 144 (72)
Watt/m² 220,0 Module surface (m²) 1,998
Cell Triple-cut Wafer Size G12 (210mm)
Module efficiency 22,0% Temp. Coef PMAX -0,3%/K
Cell Technology TOPCon N-Type Glass Type Dual Glass
Panel frame color Black Panel backsheet type Glass (transparent)
Dimensions 176,2 x 113,4 x 3,0 cm Weight 21,0kg
Cable length + 1 100mm - MC4-EVO2 connectors
Cable length - 1 100mm - MC4-EVO2 connectors
Junction box Split box - Mid
Product warranty 25 years
Performance warranty 87,4% after 30 years
Module packaging 36 per pallet - 936 per container
