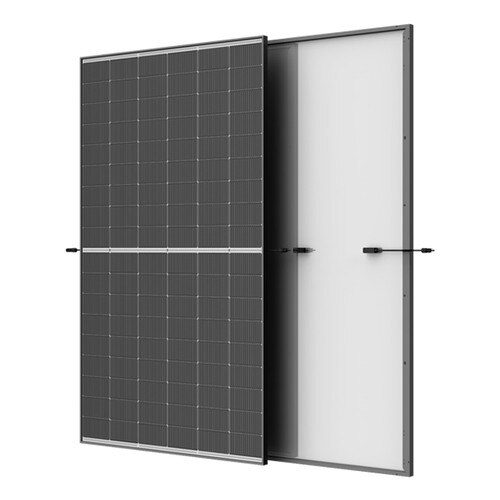

Trina Solar Vertex S+ 505W Half-Cut Black Frame Dual Glass (TSM-505-NEG18R.28)

Name: Trina Solar Vertex S+ 505W Half-Cut Black Frame Dual Glass (TSM-505-NEG18R.28)
SKU: 31-118619
Availability: InStock

Manufacturers part number TSM-505-NEG18R.28

Our reference 31-118619

Quantity discounts available

Watt 505 Module type Monofacial Framed Number of cells 108 (54)

Watt/m² 227,0 Module surface (m²) 2,224

Cell Half-cut Wafer Size G12R (210x182mm)

Module efficiency 22,7% Temp. Coef PMAX -0,29%/K

Cell Technology TOPCon N-Type Glass Type Dual Glass

Panel frame color Black Panel backsheet type Glass (white)

Dimensions 196,1 x 113,4 x 3,0 cm Weight 23,5kg

Cable length + 1 300mm - MC4-EVO2 connectors

Cable length - 1 300mm - MC4-EVO2 connectors

Junction box Standard - Top

Product warranty 25 years

Performance warranty 87,4% after 30 years

Module packaging 36 per pallet - 864 per container
